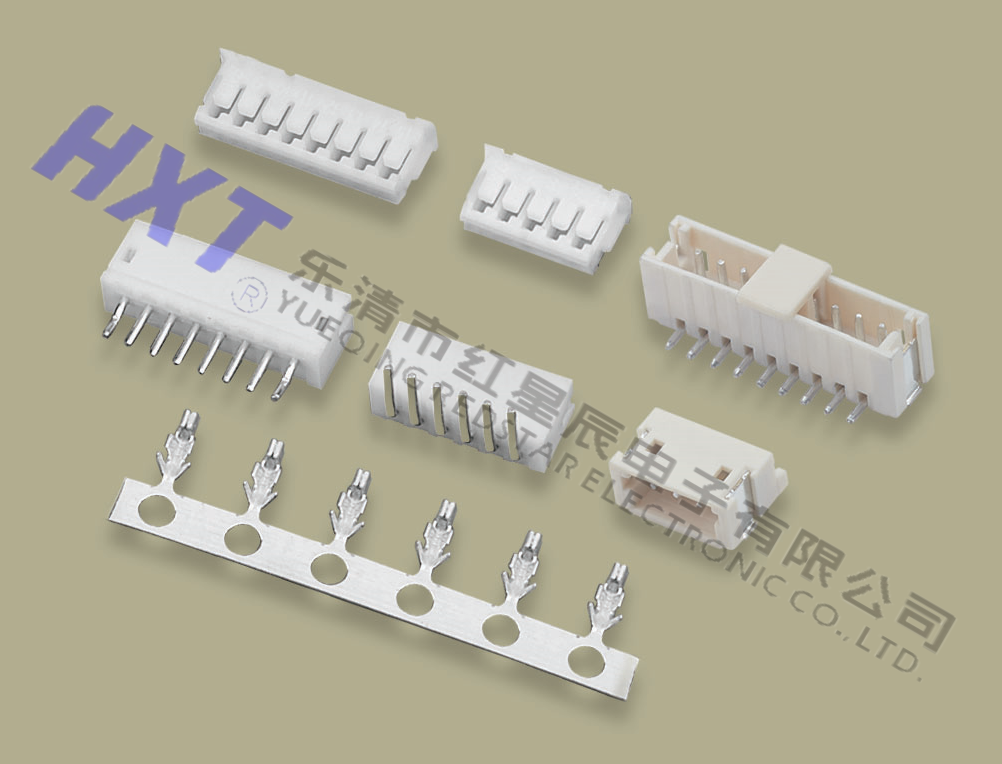

15000(ZH)连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2~13

口适用线规(Applicable wires):AWG32#~26#

口适用基板厚度(Applicable PC board thickness):1.2mm

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):50V.AC/DC

口额定电流(Current rating):1A

口接触电阻(Contact resistance):≤0.02Ω

口绝缘电阻(Insulation resistance):≥500MΩ

口耐压(Withstand voltage):500V.AC/1min

口材料(Material):

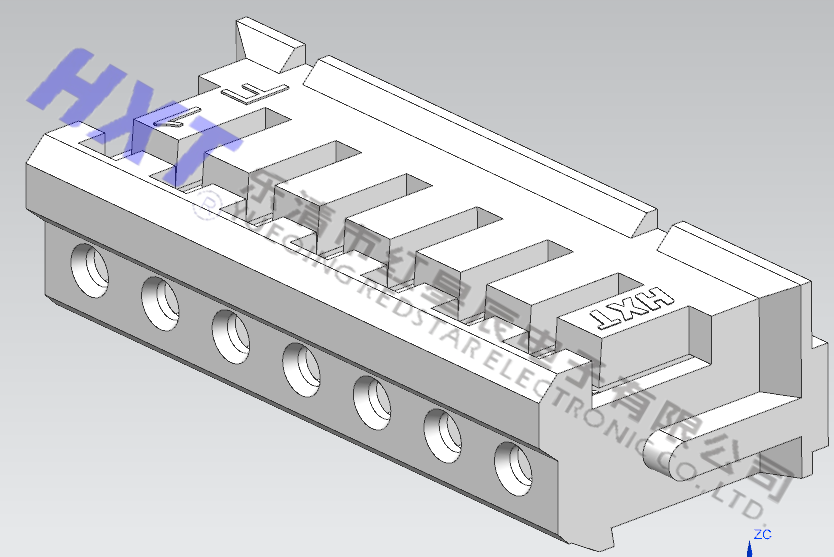

口孔座(Houshing):尼龙(PA66)UL94V-2(0)

口针座(Wafer):尼龙(PA66)/PA6T/PA9T UL94V-2(0)

口端子(Terminal):磷青铜

口包装方式(Package):贴片(Wafer)

□P:散装(Loosen Package)

□T:管装(Pipe Package)

□R:编带(Tape And Reel Package)
